Ideal for lightweight bulletproof body armor

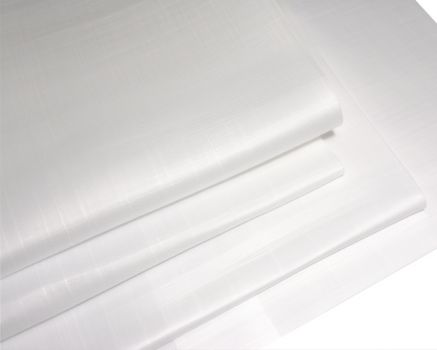

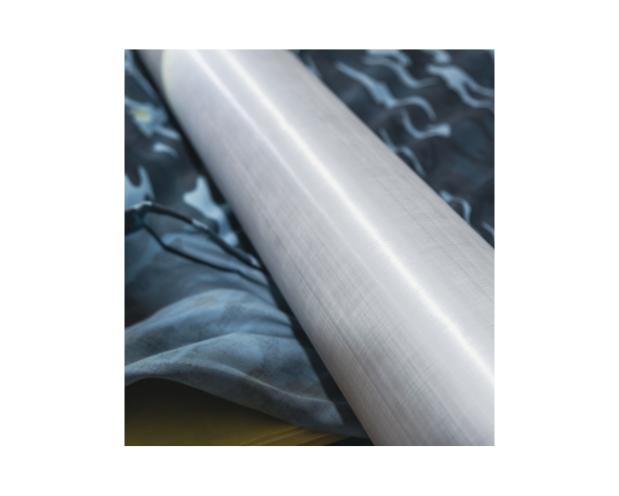

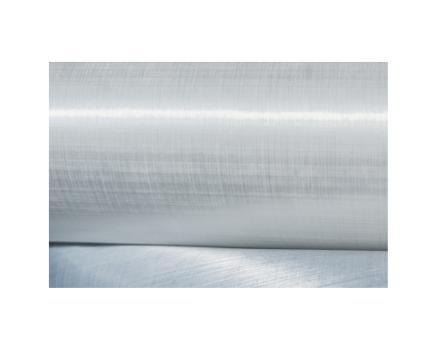

Applied the organic fibers with the highest modulus rate and strength rate, the POLYETHYLENE Uni-directional (UD) FABRICs can reduce the degree of deformation on the back surface of the body armor, avoiding blunt injuries to the human body caused by excessive indentation. They have excellent abrasion resistance, impact resistance, and corrosion resistance. They are lightweight, water-repellent, and exhibit excellent resistance to light.
Type | Areal Density (g/㎡) | Thinness (mm) | Width (m) | Function |
|---|---|---|---|---|
AP-160 | 160±5 | 0.16 | 1.6 | bulletproof soft armor |
AP-130 | 130±5 | 0.13 | 1.6 | bulletproof hard armor & helmet |
| Structure | Two orthogonal unidirectional laminated materials at 0°/90°, Aerorate patented-formula resin adhesive | |||
| Length | The length can be customized to meet your specific requirements. | |||
Applied this PE UD Fabric as raw material, our soft panel designs seamlessly integrate into our vest series, consisting of Full Protection, Concealable, Quick-Release, Tactical, Female, Waistcoat, and other variants; Backpack, Suitcase, and other gears. Each design provides a tailored fit, increased maneuverability, and higher cost-effectiveness. | ||||
1. Remove the functional panels from the carrier.
2. Use a soft-bristled brush or cloth to wipe the surface of the panel, avoid using cleaners that could damage the surface of the panel.
3. Dry clean, handwash or machine wash the carrier, avoid using any bleach.
4. Lay flat the carrier, air dry or humble dry it. We suggest that you prepare another carrier in case the cleaning causes delay.
5. Insert the panel back into the carrier.
To know more details, please click here: Care Instruction: How to clean and store your armor?
1. Ensure that your vest/plate carrier has the necessary pockets or compartments designed to hold ballistic plates. Most of them have front and back pockets for this purpose, while some have side pockets, too.
2. Start by unfastening any straps or closures on the vest/carrier to access the pockets.
3. Take the ballistic plates and orient them correctly. Typically, the curved side of the plate, instead of the "STRIKE FACE" side, should face your body for better ergonomics and fit.
4. Slide the plates into the appropriate pockets. Make sure they are centered and aligned properly.
5. Once the plates are inserted, secure them in place by fastening any straps, Velcro closures, or buckles provided by the vest/carrier. Ensure that the plates are snugly held in position and do not shift around.
6. Adjust the straps to achieve a comfortable and secure fit. The vest/carrier should be snug but not overly tight, allowing for freedom of movement while maintaining proper protection.
To know more details, please click here: Use Instruction: How to insert and remove the ballistic plate?
All our products are tested to NIJ standards by third party professional laboratory, giving you confidence in the quality and protection of our products. The claimed armor materials are inspected and graded by our lab technicians to ensure they meet our strict quality criteria. Please Contact Us to have a copy of test report.
All of our armors come with a 5-year warranty and are tested to NIJ standards giving you confidence in the quality and protection of our products.
